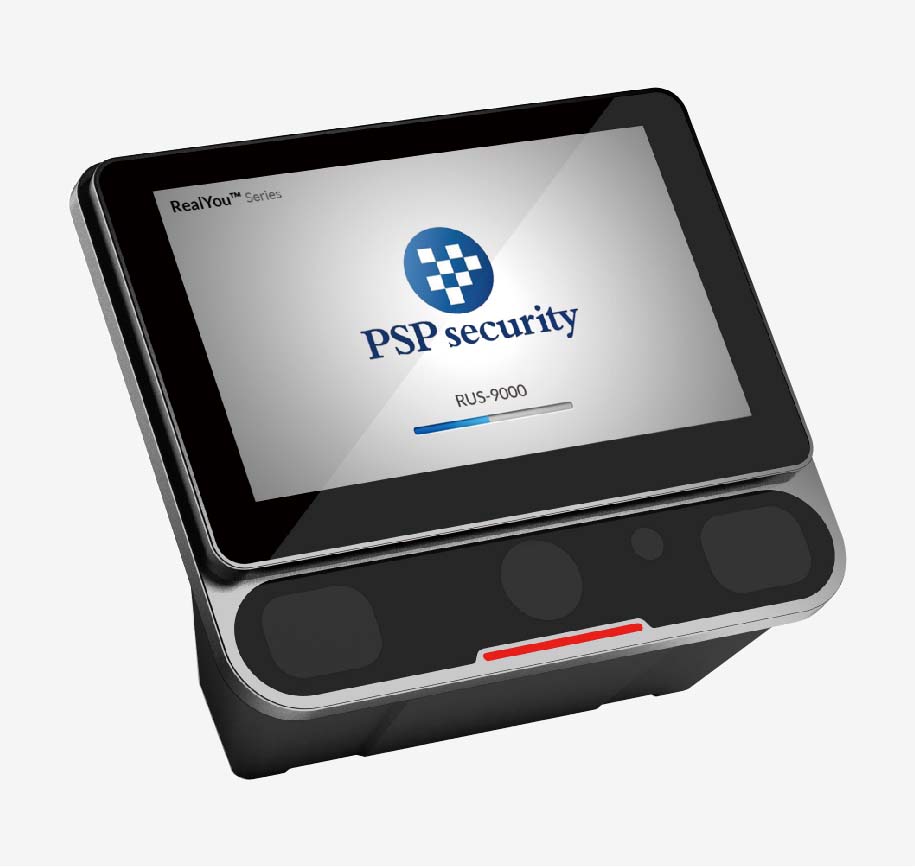

RealYou™ RUS-9000 Series

Home / Products

RealYou™: Industry's First Dual Iris + Real Face Recognition System

Integrating our proprietary iris recognition technology, and IdenFace3™ engines originated from our highly acclaimed AccuFACE™ product line, RealYou™ series RUS-9000 is the first system in the market that can complete 3 factors of ocular identification in a single step.

Unlike traditional iris scanners, RUS-9000 can be operated comfortably at a comfortable distance. Simply look at the screen and face plus dual iris recognition are done instantly!

Download RUS-9000 Brochure

RUS-9000 Feature Highlights

Highest Accuracy

authenticate real face (ocular area) plus dual iris with 99.999%+ accuracy.

Comfortable to Use

long operating distance (45~65cm). No more eye exam feeling. No more green/red light to adjust the focal distance.

Works on Face Mask

perfect to use in laboratory, hospital, and factory where wearing face mask is required.

Intelligent Multi-factor

flexible authentication for different needs, like Iris-only, Face+Single Iris, Face+Dual Iris.

Easy to Install

stylish all-in-one housing supports wall mount, tripod mount, and desktop use.

Slim but Feature-rich

compact and slim body, equips with a RFID reader, Gigabit Ethernet, and access controller I/O.

RealYou™ RUS-9000 Specifications

Technology Specifications

TechnologyRealYou™ biometric engine with facial (ocular) and dual iris recognition
User enrollment time< 20 seconds
User verification time< 1 second
False acceptance rate (FAR)< 0.001 % (user adjustable)
False rejection rate (FRR)< 0.5 %
User pose tolerance15 degrees for tilt, roll & yaw
User appearance toleranceHigh tolerance to eye glasses, beard, cosmetic make-up & different hairstyles
User verification methodOne factor: iris-only or face-only
Two factor: face + iris, or dual iris
Three factor: face + dual iris
Combination with PIN / card possible
Operating light conditions0 to 10,000 LUX

System Specifications

ModelRUS-9000 Series
Dimensions & weight137 (W) x 120 (H) x 88 (D) mm, 550 g
Power supplyDC 12V / 2.0A
User capacity in 1:N3,000 users
User capacity in 1:1Up to 100,000 users
Digital input / output2 x input (door sensor, exit switch)
2 x output (relay, alarm)
Invisible tamper alarm
Wiegand interface1 x input; 1 x output
Keypad & card readerBuilt-in touch keypad and card reader (MIFARE or EM)
NetworkGigabit Ethernet
Optional Wi-Fi IEEE 802.11 a/g; RS-232 or RS-485 available
Operating temperature0 to 50°C (32–122°F)
Regulatory complianceFCC, CE, RoHS

Specifications are preliminary and subject to change without notice.

Where RUS-9000 Is Used

High-Security Facilities

Three factors of ocular identification — real face plus dual iris — completed in a single step

99.999 %+ accuracy, with a false acceptance rate below 0.001 % and user-adjustable threshold

False rejection rate under 0.5 %, so authorised users are not turned away

Laboratories, Hospitals & Cleanrooms

Works while the user wears a face mask — the ocular area is what is read

Comfortable operating distance of 45 to 65 cm; no eye-exam posture

No green / red focus light to line up against

Flexible Authentication

One factor: iris-only or face-only

Two factor: face plus a single iris, or dual iris

Three factor: face plus dual iris, optionally combined with PIN or card

Installation & Integration

Wall mount, tripod mount or desktop use; 137 x 120 x 88 mm, 550 g

Built-in touch keypad and MIFARE or EM card reader

Wiegand in / out, 2 digital inputs and 2 outputs, with invisible tamper alarm

Gigabit Ethernet, with optional Wi-Fi 802.11 a/g
