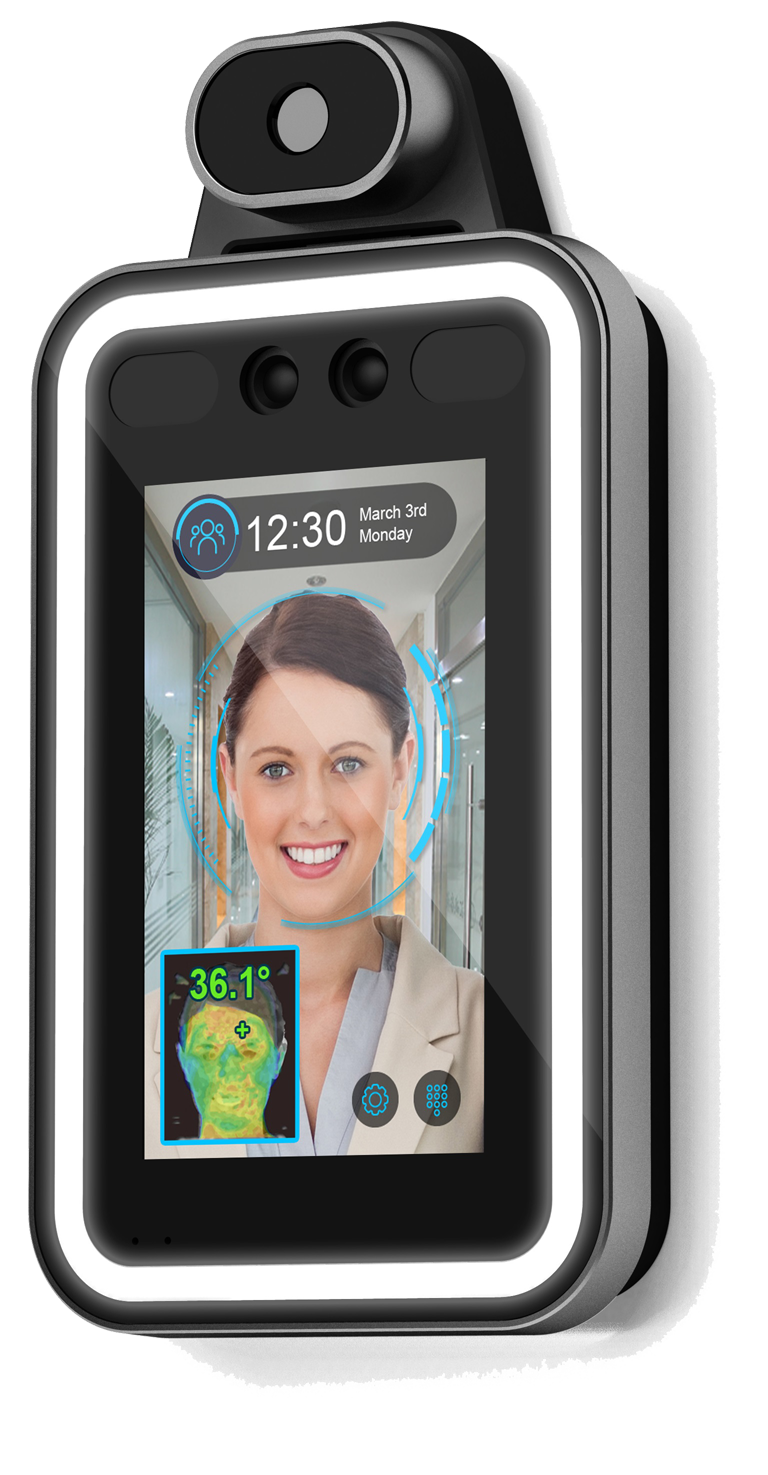

AccuFACE ETC-T5 Facial Recognition System

Built with high-resolution thermal imaging technology, AccuFACE ETC-T5 is a special version of the AccuFACE system, designed to enforce contactless fever detection, face mask check, and facial recognition at the same time, for up to 20,000 users.

Unlike low-cost thermopile based products which are slow and difficult to operate, ETC-T5 equips a long-wave infrared thermal imager and can sense body temperature in real-time (30 FPS). And its wide operating range (from 30 to 200 cm) and full sensing angle make the operation of fever detection fast and easy.

Download ETC-T5 Introduction

AccuFACE® ETC-T5 Key Features

Real Thermal Imager

authentic long-wave infrared (LWIR) thermal imager equipped

Wide-angle Speedy Sensing

sense every point within the view angle at 30 frames per second

Face Mask Detection

detect whether wearing face mask and enforce face covering policy

Liveness Detection

reject hacking with photo printout, video and digital image

Keep Picture Records

store up to 100,000 logs with snapshots and temperature records

Alarm System Ready

notify fever alarm with voice/buzzer alert and LED ring blinking; can trigger external alarm via digital output

Facial Recognition Possible

can further support facial recognition like EFR-T5 during fever detection

Ultra Compact

size of a smart phone, only 25mm thick

Easy to Install

supports both wall mount and tripod mount; built-in PoE function

AccuFACE® ETC-T5 Specifications

Comparing Thermal Sensing Technologies

AccuFACE ETC-T5Thermopile based products
TechnologyHi-resolution LWIR thermal imagerLow-resolution thermopile array
Operating distanceWide range (30 to 200 cm)Short (30~40 cm)
View angleWide — able to sense at full screenNarrow — user must align to a certain area
Sensing speedVery fast, high-framerate scanningSlow, 3~5 seconds to complete
DurabilityStable and durableNeeds calibration after a few months
CostModerateLow

Thermal Sensing Specifications

TechnologyLWIR thermal sensor array
Thermal image80 x 60, progressive scan & shutterless
Spectral range8 µm to 14 µm
Frame rateUp to 30 frames / second
Accuracy0.3°C (0.54°F) after field calibration
View angleAround 60 degrees
Sensing range30°C ~ 45°C (86°F ~ 113°F), on the user's face only
Sensing distance30~200 cm (1~6.5 ft) screening mode
30~150 cm (1~5 ft) normal mode

System Specifications

ModelAccuFACE™ ETC-T5 Series
Dimensions & weight88 (W) x 168 (H) x 25 (D) mm, 250 g
Power supplyDC 12V / 2.0A
IEEE 802.3af PoE
CamerasDual Full-HD cameras (2 MP x 2)
Active illumination4 hi-power IR LEDs; white-light LED ring
Display4" high-resolution IPS LCD with capacitive multi-point touch
AlarmBuilt-in tamper switch; human voice and buzzer alarm
Digital input / output2 x input (1 exit switch, 1 multi-function)
2 x output (1 relay, 1 digital output)
NetworkGigabit Ethernet
Operating temperature0 to 50°C (32–122°F)
Regulatory complianceFCC, CE, RoHS
OriginDesigned and made in Taiwan

Specifications are based on the AccuFACE ETC-T5 brochure V2 and are subject to change without notice.

Where ETC-T5 Is Used

Hospitals, Clinics & Care Facilities

Contactless temperature screening at entrances without stopping the queue

Mask detection enforces a face-covering policy on the way in

Recognition still works while the user is wearing a mask

Factories & Office Lobbies

Screens from 30 to 200 cm across a 60-degree view angle — no marked spot to line up on

Real-time LWIR imaging at up to 30 frames per second, not a 3~5 second wait per person

Can run facial recognition for access control at the same time as fever detection

Schools & Public Venues

Voice and buzzer alert plus LED ring blinking when a reading is abnormal

Digital output can trigger an external alarm or hold a turnstile

Stores up to 100,000 logs with snapshot and temperature record

Installation & Deployment

Wall mount or tripod mount; 88 x 168 x 25 mm, 250 g

Built-in IEEE 802.3af PoE — power and Gigabit network over one cable

Designed and made in Taiwan; FCC, CE and RoHS compliant, operating temperature 0 to 50°C
